适用范国Scope of application
食道、胃、肠等消化手术中的端对端、端对侧和侧对侧的吻合
Esophagus, stomach, intestine and other digestive surgery with end to end, end to side and side to side of the anastomosis.

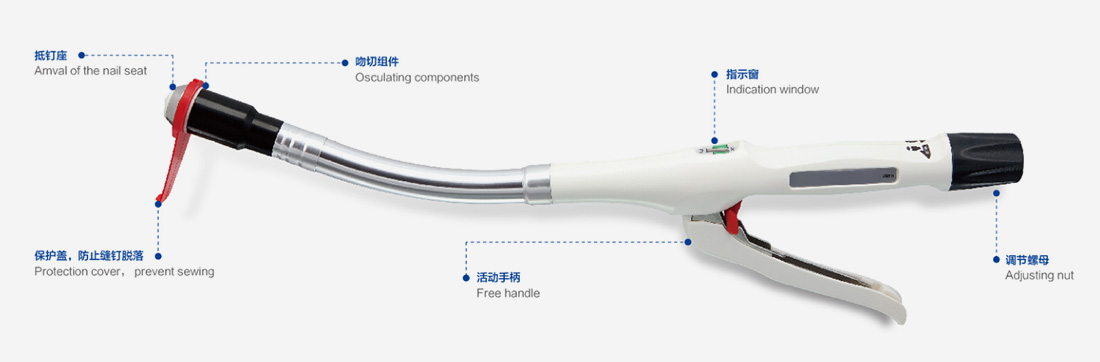

特硬度垫刀圈在切割组织时,可清晰听到”啪”声,提示医生器械已经击发并且组织已被切断,医生可以放心的退出吻合口。
Special hardness pad ring.while cutting the tissue you can clearly hear the sound reminding the doctor the device is on and the organization has been cut off so the doctor can safely exit the anastomosis.
为不同厚度的用提供不同的缝钉高度,使得在缝合各种厚度的组织时,均能确保钉成完美的B"型
Different staple heights are avilable for different I hicknesses of tissue,ensuring the stitching into a perfect"B"when stitching the tissue of various thicknesses
独特3.8mm钉宽及梯形设计吻合钉成型完整,一钉不漏。
Unique 3.8mm nail width and trapezoidal design staples,no leaking.
清断精确的指示窗提示,可以保持缝合的组织压缩厚度,红色指针位于绿色区域中间打开保险块便可击发。
Clear and precise indication window tips, you can keep the thickness of the tissue stitching by putting the red pointer in the middle of the green area.
活动手柄防滑设计,使医生握动时减少滑动。
Activity handles prevent slippery design, reduce the doctor is moving when sliding.
调节钮标有明确的转向标记,旋转时舒适防滑,节省了手术时间和安全性。
Regulator is marked with a clear steering mark comfortable non-slip rotation, saving the operation time and improving the safety.
产品规格
型号 | TH-W | TH-W | TH-W | TH-W | TH-W | TH-W | TH-W | TH-W | TH-W |
规格 | 17 | 19 | 21 | 23 | 26 | 29 | 32 | 33 | 35 |
钉数 | 13-35 | 13-35 | 13-35 | 13-35 | 13-35 | 13-35 | 13-35 | 13-35 | 13-35 |
钉高 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.8± 0.5 | 5.0 | 5.0 | 5.0 |
外劲 | 17±0.5 | 19±0.5 | 21±0.5 | 23±0.5 | 26±0.5 | 29±0.5 | 32±0.5 | 33±0.5 | 35±0.5 |
